RLC汽輪機/泵用高速膜片聯軸器
RLC金屬膜片聯軸器是RL系列的高速設計型號，采用雙節低風阻設計， 中間套及膜片組可以整體更可用于長距離機器軸系傳動。在半聯內測設計平衡槽，適用于汽輪機組及高速風機系統等場合使用。

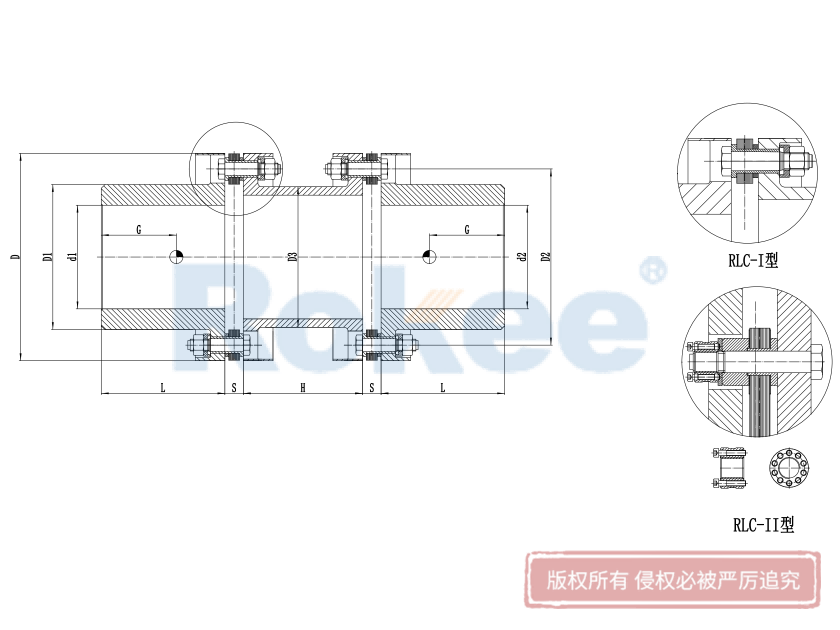

RLC汽輪機、泵用系列膜片聯軸器技術參數及尺寸
| 規格 | D | D1 | D3 | d1(max) | d2(max) | L | S | 許用轉速 | 公稱轉矩 | 瞬時轉矩 |
|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | n max(r/min) | T(N.m) | Tmax(N.m) | |
| RLC85-6 | 85 | 49 | 47 | 35 | 35 | 60 | 8 | 13000 | 15 | 23.5 |
| RLC105-6 | 105 | 63 | 60 | 45 | 45 | 84 | 8 | 10000 | 57 | 89 |
| RLC125-6 | 125 | 77 | 72 | 55 | 55 | 84 | 11 | 8000 | 131 | 205 |
| RLC135-6 | 135 | 91 | 85 | 65 | 65 | 107 | 11 | 6700 | 328 | 510 |
| RLC156-6 | 160 | 105 | 104 | 75 | 75 | 107 | 15 | 5900 | 598 | 935 |
| RLC178-6 | 180 | 119 | 123 | 85 | 85 | 132 | 15 | 5100 | 935 | 1450 |
| RLC210-6 | 210 | 133 | 129 | 95 | 95 | 132 | 20 | 4300 | 1780 | 2780 |
| RLC225-6 | 230 | 154 | 148 | 110 | 110 | 167 | 22 | 4000 | 3580 | 5600 |
| RLC255-6 | 260 | 168 | 164 | 120 | 120 | 167 | 24 | 3400 | 5000 | 7800 |
| RLC280-6 | 280 | 196 | 190 | 140 | 140 | 202 | 30 | 3000 | 8500 | 13200 |
| RLC305-6 | 310 | 210 | 199 | 150 | 150 | 202 | 32 | 3500 | 9000 | 14040 |
| RLC340-6 | 340 | 238 | 215 | 170 | 170 | 242 | 34 | 3300 | 13500 | 21060 |
| RLC365-6 | 370 | 252 | 241 | 180 | 180 | 242 | 34 | 2800 | 20250 | 31500 |
| RLC420-6 | 420 | 280 | 269 | 200 | 200 | 282 | 36 | 2650 | 30500 | 47500 |
| 規格 | 質點G | 角向偏差 | 軸向偏差 | 中間接套H | 中間套質量 | 中間套轉動慣量 | 膜片組扭轉剛度 | 質量 | 扭轉剛度 | 轉動慣量 |
| (mm) | (±△o) | (±△mm) | min(mm) | kg | Jh(Kg.m2) | Ct-10E6(N.m/rad) | (Kg) | Ct-10E6(N.m/rad) | J(Kg.m2) | |
| RLC85-6 | 39.95 | 1 | 1 | 60 | 0.75 | 0.000474577 | 0.09 | 2.17 | 0.045 | 0.001879 |
| RLC105-6 | 54.1 | 1 | 1 | 60 | 1.16 | 0.007982306 | 0.19 | 3.98 | 0.095 | 0.017365 |
| RLC125-6 | 52.1 | 1 | 1 | 65 | 1.57 | 0.012840503 | 0.34 | 5.69 | 0.17 | 0.029881 |
| RLC135-6 | 62.2 | 1 | 1 | 65 | 1.82 | 0.015821698 | 0.29 | 8.3 | 0.145 | 0.038552 |
| RLC156-6 | 64.5 | 1 | 1.4 | 85 | 2.7 | 0.029549844 | 0.84 | 11.92 | 0.42 | 0.0765 |
| RLC178-6 | 77.6 | 1 | 1.4 | 85 | 3.3 | 0.012672335 | 1.1 | 17.18 | 0.55 | 0.117345 |
| RLC210-6 | 80.6 | 1 | 1.4 | 105 | 6.16 | 0.123404108 | 1.97 | 24.88 | 0.985 | 0.307808 |
| RLC225-6 | 96.9 | 0.75 | 1.6 | 105 | 7.17 | 0.156003721 | 3.45 | 36.17 | 1.725 | 0.418007 |
| RLC255-6 | 103.2 | 0.75 | 1.6 | 150 | 13.64 | 0.402124952 | 5.13 | 52.24 | 2.565 | 1.00425 |
| RLC280-6 | 118.1 | 0.75 | 2 | 160 | 14.77 | 0.417183999 | 7.94 | 71.77 | 3.97 | 1.164368 |
| RLC305-6 | 122 | 0.75 | 2 | 185 | 24.43 | 0.896256056 | 9.35 | 94.83 | 4.675 | 2.302512 |
| RLC340-6 | 141.3 | 0.75 | 2 | 190 | 30.23 | 1.284050197 | 12.58 | 131.63 | 6.29 | 3.4181 |
| RLC365-6 | 145 | 0.75 | 2 | 210 | 37.4 | 2.053340065 | 15.95 | 156.6 | 7.975 | 5.31668 |
| RLC420-6 | 167.8 | 0.75 | 2 | 220 | 49.5 | 3.615537852 | 23.95 | 218.3 | 11.975 | 9.38107 |
| 規格 | D | D1 | D3 | d1(max) | d2(max) | L | S | 許用轉速 | 公稱轉矩 | 瞬時轉矩 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | n max(r/min) | T(N.m) | Tmax(N.m) | |
| RLC255-8 | 260 | 168 | 164 | 120 | 120 | 167 | 23 | 3000 | 6500 | 10140 |
| RLC280-8 | 280 | 196 | 190 | 140 | 140 | 202 | 25 | 2800 | 11050 | 17238 |
| RLC310-8 | 310 | 210 | 199 | 150 | 150 | 202 | 27 | 2500 | 11700 | 18252 |
| RLC340-8 | 340 | 238 | 215 | 170 | 170 | 242 | 32 | 2300 | 17550 | 27378 |
| RLC370-8 | 370 | 252 | 241 | 180 | 180 | 242 | 32 | 2100 | 26325 | 41067 |
| RLC420-8 | 420 | 280 | 269 | 200 | 200 | 282 | 38 | 1950 | 50000 | 78000 |
| RLC445-8 | 450 | 330 | 321 | 220 | 220 | 282 | 38 | 1850 | 60000 | 93600 |
| RLC500-8 | 500 | 360 | 346 | 240 | 240 | 330 | 44 | 1800 | 72000 | 112500 |
| 規格 | 質點G | 角向偏差 | 軸向偏差 | 中間接套H | 中間套質量 | 中間套轉動慣量 | 膜片組扭轉剛度 | 質量 | 扭轉剛度 | 轉動慣量 |
| (mm) | (±△o) | (±△mm) | min(mm) | kg | Jh(Kg.m2) | Ct-10E6(N.m/rad) | (Kg) | Ct-10E6(N.m/rad) | J(Kg.m2) | |
| RLC225-8 | 103.497 | 0.5 | 3.6 | 150 | 13.644 | 0.223 | 10.25 | 52.651 | 5.125 | 0.629 |
| RLC280-8 | 118.425 | 0.5 | 3.6 | 160 | 14.769 | 0.242 | 16.15 | 72.480 | 8.075 | 0.902 |
| RLC310-8 | 123.418 | 0.5 | 3.8 | 185 | 24.437 | 0.535 | 18.69 | 96.239 | 9.345 | 1.589 |
| RLC340-8 | 144.162 | 0.5 | 3.8 | 190 | 30.234 | 0.807 | 25.15 | 135.020 | 12.575 | 2.613 |
| RLC370-8 | 146.339 | 0.5 | 4 | 210 | 37.400 | 1.17 | 31.91 | 158.593 | 15.955 | 3.668 |
| RLC420-8 | 169.191 | 0.5 | 4.2 | 220 | 49.497 | 2.036 | 47.89 | 220.412 | 23.945 | 6.458 |
| RLC445-8 | 160.652 | 0.5 | 4.2 | 220 | 55.760 | 2.043 | 58.46 | 303.786 | 29.23 | 10.191 |
| RLC500-8 | 187.242 | 0.5 | 4.5 | 230 | 73.668 | 3.509 | 71.67 | 415.856 | 35.835 | 17.063 |
| 規格 | D | D1 | D3 | d1(max) | d2(max) | L | S | 許用轉速 | 公稱轉矩 | 瞬時轉矩 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | n max(r/min) | T(N.m) | Tmax(N.m) | |
| RLC445-10 | 450 | 330 | 321 | 220 | 220 | 282 | 38 | 1850 | 75000 | 117000 |
| RLC500-10 | 500 | 360 | 346 | 240 | 240 | 330 | 44 | 1800 | 105000 | 163800 |
| RLC630-10 | 630 | 405 | 398 | 280 | 280 | 330 | 44 | 1420 | 210000 | 327600 |
| RLC700-10 | 700 | 460 | 448 | 320 | 320 | 330 | 50 | 1280 | 288000 | 449280 |
| RLC760-10 | 760 | 493 | 478 | 340 | 340 | 450 | 60 | 1180 | 365000 | 569400 |
| RLC860-10 | 860 | 548 | 528 | 380 | 380 | 450 | 60 | 1050 | 535000 | 834600 |
| RLC950-10 | 950 | 605 | 598 | 420 | 420 | 540 | 60 | 950 | 720000 | 1123200 |
| 規格 | 質點G | 角向偏差 | 軸向偏差 | 中間接套H | 中間套質量 | 中間套轉動慣量 | 膜片組扭轉剛度 | 質量 | 扭轉剛度 | 轉動慣量 |
| (mm) | (±△o) | (±△mm) | min(mm) | kg | Jh(Kg.m2) | Ct-10E6(N.m/rad) | (Kg) | Ct-10E6(N.m/rad) | J(Kg.m2) | |
| RLC445-10 | 160.652 | 0.32 | 4.5 | 220 | 55.760 | 2.043 | 71.35 | 303.786 | 35.675 | 10.191 |
| RLC500-10 | 187.242 | 0.32 | 5 | 230 | 73.668 | 3.509 | 91.95 | 415.856 | 45.975 | 17.063 |
| RLC630-10 | 198.637 | 0.32 | 6 | 245 | 130.080 | 12.453 | 193.1 | 578.547 | 96.55 | 39.181 |
| RLC700-10 | 197.354 | 0.32 | 7 | 250 | 217.214 | 20.778 | 260.46 | 782.783 | 130.23 | 62.154 |
| RLC760-10 | 261.444 | 0.32 | 8 | 265 | 197.708 | 26.842 | 331.34 | 1050.094 | 165.67 | 96.662 |
| RLC860-10 | 267.654 | 0.32 | 8 | 290 | 284.050 | 52.988 | 491.07 | 1369.448 | 245.535 | 169.6 |
| RLC950-10 | 313.875 | 0.32 | 8 | 290 | 333.215 | 73.988 | 658.31 | 1854.832 | 329.155 | 264.568 |
